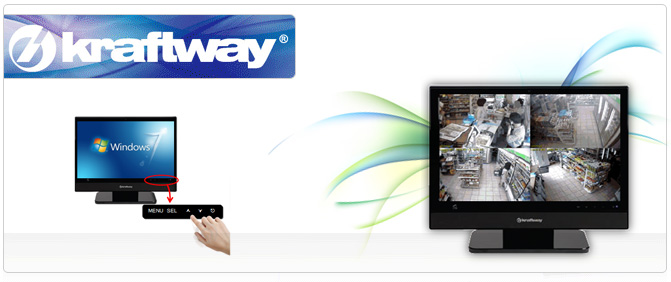

 20" + CCTV
|
| |
 |
| |
 |
- Developing one product with KM4x and DVR CCTV (Developing an extra DVR board).
- Possible to supply the high cost DVR CCTV equipment as a cost-effective product.
- Best applying for general retailers and small stores because of 4channels feature.
- Possible to purchase the DVR CCTV as an option because of being developed all–in-one type with KM4x.
|
|
 |
- Applying the DVR CCTV 4channel.
- Possible to apply a CCTV and an AIO PC with only one LAN Cable.
- Possible to apply various functions such as CCTV checking and recording stop with an
smart phone
by installing the simple application.
- CCTV will be working permanently in case of no unplugging of the CCTV even turning off the PC
|
|
|
| |
| PC Part |
| Model |
KM4x |
| Display |
20Inch Wide 16:9 HD (1600 x 900 ) Resolution |
| Processor Support |
Intel® Core i3/ i5/ i7 (LGA1155, Intel® H61 Sandy Bridge Chipset) |
| Memory Support |
DDR3-1066/1333, 2 x 1.5V DDR3 SO-DIMM slots, Up to 8GB Ram |
| Features |
Real Teck ALC887 Audio High Definition Audio
SATA 3Gb/s for SATA 3Gb/s Devices / Infineon TPM(On Board Solution)
Microsoft Windows7/Vista Premium Ready
|
| I/O Port |
2 USB 2.0 Ports / 2 USB 3.0 Ports / 1 HDMI
1 Optical S/PDIF Output / 1 Ethernet[10/100/1000Mbps] / 1 Audio Line In
|
| Slots |
1 x Mini PCI Express : Half Size (WiFi/Bluetooth Combo)
1 x Mini PCI Express : Full Size (MSATA Function, Module Optional)
1 x Mini PCI Express : Full Size on Daughter Board
(TV Tuner Module - USB 2.0 Interface, Module Optional)
|
| PC Camera |
1.3Mega Pixels & HD Camera |
| Speaker |
Integrated 2 x 3W(MAX) |
| Microphone |
Integrated MIC |
| Option |
HDD |
250G(Up to 1TB,2.5inch SATA) |
| ODD |
Super Multi DVD-Slim or Tray Type |
| Memory |
(Up to 8G) |
| Touch |
PCAP,SAW,IR Multi Touch(Win7) |
| RS232 |
4 Port |
| WiFi |
802.11n WiFi |
| 2+HDD |
Yes |
| Security |
Finger Print System / RF Card Systems / Smart Card Systems |
| 5 in 1 + Jack + 2USB |
Yes |
| Auto Cooling System |
Cooling + Temp Sensor |
| Color |
Black, White, or OEM Color |
| Power |
19V AC/DC or 220V AC (150W) |
|
|
| |
| CCTV Part (Potion Price : US$125.00) |
| Items |
Descriptions |
Remarks |
| OS(Operation System) |
User Friendly Embedded RTOS(Linux) |
|
| Video Input Channel |
4/8 Channel (CVBS) |
|
| Display Frame Rate |
120 FPS (CIF) |
|
| Compression |
H. 264 |
|
| Mobile Viewer |
YES (iphone, Android) |
|
| Recording Mode |
Continuous, Motion, Assigned Time |
|
| Display Mode |
General Mode, Auto Seq., |
|
| Back Up File (Format) |
Clip Player (View Program) |
|
| Buck-Up |
USB Stick (USB 2.0) |
|
| Ethernet Inter Face |
Ethernet |
|
| HDD(SATA) |
UP To 2T byte |
|
| Search |
Sec, Minute, Time, Date, Event for All Camera |
|
| Alarm(Relay I/O)Port |
1ch |
Option |
| Sensor Input |
2ch |
Option |
| Motion Detection |
Yes (Detection Area, Variable Sensitivity) |
|
| Pan/Tilt |
Yes (Detection Area, Variable Sensitivity) |
|
| RF Reader |
Yes |
Option |
| Display Configuration Adjust |
Yes
(Brightness, Contrast, Hue Saturation Control Perch)
|
|
| Motion Detection |
Yes (Detection Area, Variable Sensitivity) |
|
| Operation and Control |
Remote Controller, Mouse(USB Type) |
|
| International Approval |
CE |
|
| I/O Port |
1X CCTV USB 1x CCTV RJ45 Port
4X Audio Port 4x CCTV Camera Port4CH
|
|
|
|
|
|
|
